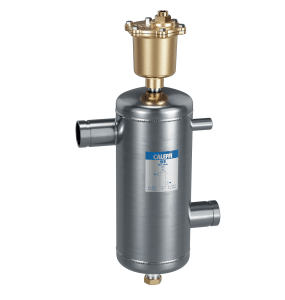

High Efficiency Deaerator (HED) for our Amicus Altus commercial heat pumps, with DN50 ‘Victaulic’ connections, is capable (at first pass) to collect and release large quantities of air that could be present in the hydronic circuit of your heating and cooling system. The HED is equipped with a connection for pressure relief valve as standard.
The de-gasser must be installed in all Altus installations (one per heat pump for 2 pipe models and 2 per unit for 4 pipe models) to ensure that in the event of a refrigerant gas leak into the hot water circuit 90% is removed in a single pass to prevent an unsafe situation occurring within the building envelope. This is a requirement under EN378. There is also a 6-bar rated safety valve fitted which will discharge should the pressure increase due to a sudden refrigerant leak.
Key features
- Body: Stainless Steel
- Air Vent Obturator Seal: FKM
- Deaerator Body: DN 50 “Victaulic”
- Medium: Water
- Max. Working Pressure: 6 bar
- Max. Working Temperature: 90°C
